Stainless Steel Reverse Dutch Wire Mes Has High Strength, Load Capacity
Stainless steel reverse dutch wire mesh has specially designed process with different diameter wires: thicker weft than warp. And it has solid structure, high hardness and good corrosion resistance.
With excellent high temperature resistance and high filter precision, reverse dutch wire mesh commonly used for filter mesh belt or other filter element in aerospace, petroleum, chemical fiber, machinery, plastics industries, etc.

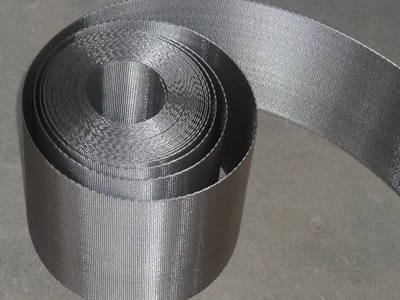

RDSS-01: Stainless steel reverse dutch mesh belt has great tensile strength.

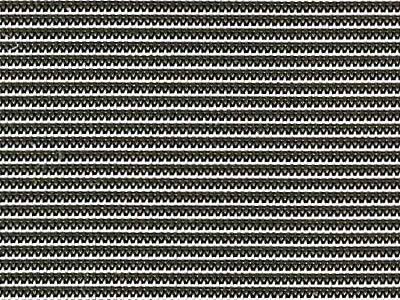

RDSS-02: Reverse dutch wire mesh sheet has good hardness and rust resistance.
Specifications of stainless steel reverse dutch wire mesh:
- Materials: 202, 302, 304, 304L, 310S, 316, 316L, 321, 410, 430, super duplex stainless steel, duplex stainless steel, etc.
- Surface treatment: pickling and passivation, polishing.
- Packing:
- Wrapped with moisture-proof paper or plastic paper;
- In wooden boxes or pallets.
| Mesh (Weft × Warp) | Wire Diameter (mm) | Weight (kg/m2) |
|---|---|---|
| 72 × 15 | 0.45 × 0.55 | 4.8 |
| 120 × 16 | 0.35 × 0.45 | 4.3 |
| 132 × 18 | 0.35 × 0.45 | 4.3 |
| 152 × 24 | 0.35 × 0.45 | 4.5 |
| 160 × 17 | 0.27 × 0.45 | 3.6 |
| 170 × 17 | 0.27 × 0.45 | 3.89 |
| 180 × 19 | 0.26 × 0.45 | 4.05 |
| 200 × 40 | 0.17 × 0.27 | 2.17 |
| 260 × 40 | 0.15 × 0.25 | 2.09 |
| 325 × 40 | 0.13 × 0.24 | 1.95 |
Stainless steel reverse dutch wire mesh features:
- Zero aperture;
- Solid structure and great hardness;
- Superior resistance to corrosion, high temperature and abrasion;
- Beautiful appearance.
Stainless steel reverse dutch wire mesh applications:
- Made into filter mesh belt, filter disc or tube;
- As the element of plastic wire drawing machine, cast film machine;
- Used in petroleum, plastic products, rubber, food processing industries.

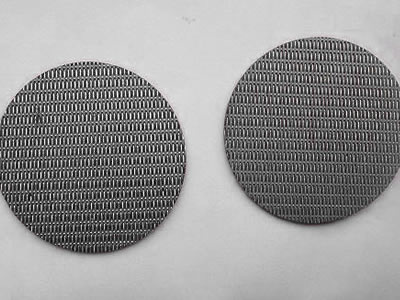

RDSS-03: Stainless steel reverse dutch wire mesh filter disc has good corrosion resistance and high filter precision.

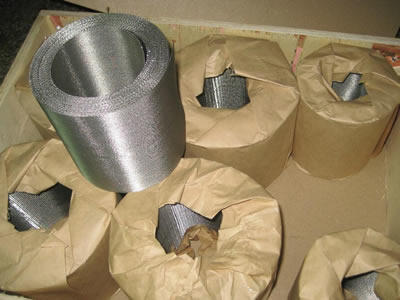

RDSS-04: Stainless steel reverse dutch wire mesh can be wrapped with moisture-proof paper and put into wooden box or on pallet.
